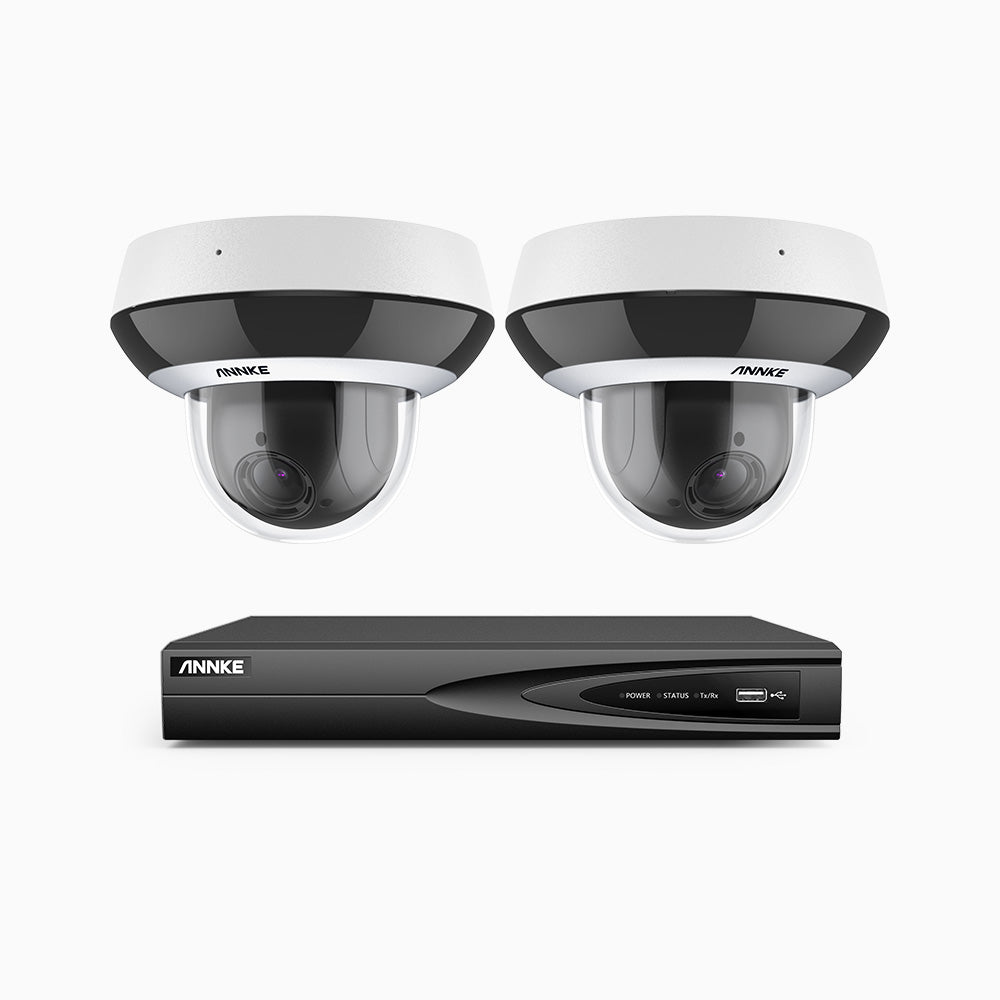

HCZ504 - 4 Channel 2 Camera PTZ PoE Security System, 3K Super HD, 4X Optical Zoom, IK10 & IP67, 2.8-12 mm Lens, Intelligent Behavior Analysis, Color Night Vision & Anti-Fog

€467,99

€659,99

SKU: N44PAM+I91BK*2

Sin disco duro

1 TB

2 TB

3 TB

4 TB

6 TB

8 TB

DIY Your Camera Color >

Secure Checkout With:

ANNKE HCZ504

Double 4. Double Clarity.
Unlimited Protection

4CH

4K NVR
Support Max. 4 Cams

4X

Optical Zoom
See Further & Clearer

330°

Pan & Tilt
Cover Every Angle

IK10

Vandal-Resistance
Against 20 Joules Impact

Unparalleled 3K Super HD & Color Night Vision

Armed with 3K OmniVision senor, the PTZ camera provides incredible 3K super HD video quality. 4 advanced image enhancement technologies of 3D DNR, HLC, EIS and 120 dB true WDR improve clarity to a new level.

Footages of colorful night vision are enabled even with ambient lighting of minimum 0.005 Lux, capturing everything in nocturnal times with rich colors up the 65 ft/20 m away.

Extreme Protection with IK10 Vandal-Proof

The rugged dome security camera is manufactured with an IK10 vandal-proof rating, which enables the camera to withstand up to 20 joules of devastating violent impacts.

Made from metal & ABS materials (provided by SABIC, the largest public company in the Middle East & Saudi Arabia), it is capable of looking after itself while protecting your property.

Check the video on the right to explore IK10 performance.

Smartest AI Human Recognition & 7 Detection Ways

The PoE camera, with industry-leading AI algorithm, is able to distinguish people from non-human beings, and send you accurate human-based alerts. Cut down the hassle of false alerts.
7 intelligent detection ways – line crossing, intrusion, region entrance/exit, unattended baggage, object removal & audio exception detection – alert you only when it matters.

Line crossing detection

Intrusion detection

Region entrance detection

Region exiting detection

Unattended baggage detection

Object removal detection

Audio Exception Detection

AI Human Recognition

Covers All Under 330° Pan & 90° Tilt Viewing

Up to 330° Pan & 90° Tilt angle of view allows the camera to cover ultra-wide areas in your home, garage, or yards. No blind spots and special movements will slip through the notice of the PoE PTZ camera.

4X Optical Zoom with Auto Focus

The 2.8-12 mm motorized lens enables you to zoom in the distant & small objects far away to find out the details you want, without manual adjustment. View license plates and face details clearly even from 100 ft away.

Exceptional Anti-Fog Function

The innovative anti-fog function enables the camera to see through the fog to produce crystal and crisp vision. Which makes the camera the best choice for monitoring areas with humid weathers, or strong fluctuations of temperatures.

Advanced H.265+ Video Format

ANNKE H.265+ coding helps the camera record longer videos and consumes less bandwidth. Save your budgets on buying more HDDs.

Small File Sizes

Send smaller file sizes to an NVR/SD card (not included) without losing 5MP quality.

Long Recording Time

H.265+ coding allows for longer recording time before overwriting the older recordings.

Remote 5MP Live View

View high-quality 5MP Super HD live stream on your smart devices without all the data.

IP67 Weatherproof – Extreme Weather Capabilities

IP67 rated, the camera is fully weatherproof & can be immersed in 1 m of water for 30 mins. It continues to operate in extreme temperatures as low as -4 °F (-20 °C). Torrential downpours, heavy winds, freezing snow storms, the camera braves them all.

Check IP67 Weatherproof Real Performance

Metal & ABS

Rugged Housing

-4 °F | -20 °C

Cold Rating

140 °F | 60 °C

Heat Rating

IP67

Water Rating

Small on Prices, Big on Features

PoE or DC Power

Power on the camera via PoE with an NVR/PoE injector, or plug it to an outlet for power supply.

Local Storage

Supports up to 256 GB TF card (not included) for local video storage without monthly cloud fees.

Customized Motion Areas

Customize the specific motion zones, like garage, front door, etc. for much more relevant motion alerts.

Motion Alerts & Remote Access

Receive instant app pushes & email alerts when there are motion events. Control the camera remotely with smart devices.

Specification

Download HCZ504 Specification

Download ANNKE NVR Specification

Camera

Image Sensor1/2.8" Progressive Scan CMOS	Video Bit Rate256 Kbps - 16384 kbps
Sub-stream50 Hz: 25 fps (704480,640480, 352240) 60 Hz: 30 fps (704480,640480, 352240)	Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
Max resolution3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display	Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Main Stream50 Hz: 15 fps (30721728), 25 fps ( 19201080, 1280960, 1280720) 60 Hz: 15 fps (30721728), 30 fps ( 19201080, 1280960, 1280720)	Third stream50 Hz: 25 fps (19201080, 1280960, 1280720, 704480, 640480, 640360) 60 Hz: 30 fps (19201080, 1280960, 1280720, 704480, 640480, 640360)
Audio Bit rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/16Kbps(AAC)	Audio Sampling RateAAC: 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32kHz, 64 kHz
Lens2.8-12 mm, 4x optical zoom, 16x digital Zoom	Shutter Speed1/1 s to 1/30,000 s
Slow ShutterYes	PT Movement RangePAN: 0° to 355°,Tilt: From 0° to 90°
Min. IlluminationColor: 0.005 lux @ (ƒ/1.5, AGC on), b/w: 0.001 lux @ (ƒ/1.5, AGC on), 0 lux with IR	Angle of ViewHorizontal FOV 96.7° to 31.6°, vertical FOV 51.1° to 17.7°, diagonal FOV 115.1° to 36.3°
PT SpeedConfigurable, from 0.1°/s to 100°/s, preset speed: 100°/s	Number of Infrared LEDs4 pcs
Night Vision DistanceUp to 65 ft/20 m	Wide Dynamic Range120 dB True WDR
Image Enhancement3D DNR, HLC, EIS, regional exposure, regional focus, digital defog	ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE,
APIOpen Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISUP	Region of Interest (ROI)8 fixed regions for each stream
Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable	Basic EventMotion detection, video tampering alarm, exception
Smart EventFace detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection	AudioBuild in mic, and support 1-ch audio input and 1-ch audio output
Ethernet1 RJ45 10M/100M self-adaptive Ethernet port	Power Output12 VDC, max. 60 mA

Image Sensor1/2.8" Progressive Scan CMOS

Sub-stream50 Hz: 25 fps (704*480,640*480, 352*240)
60 Hz: 30 fps (704*480,640*480, 352*240)

Max resolution3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display

Main Stream50 Hz: 15 fps (3072*1728), 25 fps ( 1920*1080, 1280*960, 1280*720)
60 Hz: 15 fps (3072*1728), 30 fps ( 1920*1080, 1280*960, 1280*720)

Audio Bit rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/16Kbps(AAC)

Lens2.8-12 mm, 4x optical zoom, 16x digital Zoom

Slow ShutterYes

Min. IlluminationColor: 0.005 lux @ (ƒ/1.5, AGC on), b/w: 0.001 lux @ (ƒ/1.5, AGC on), 0 lux with IR

PT SpeedConfigurable, from 0.1°/s to 100°/s, preset speed: 100°/s

Night Vision DistanceUp to 65 ft/20 m

Image Enhancement3D DNR, HLC, EIS, regional exposure, regional focus, digital defog

APIOpen Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISUP

Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable

Smart EventFace detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection

Ethernet1 RJ45 10M/100M self-adaptive Ethernet port

Video Bit Rate 256 Kbps - 16384 kbps

Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG

Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC

Third stream 50 Hz: 25 fps (1920*1080, 1280*960, 1280*720, 704*480, 640*480, 640*360)
60 Hz: 30 fps (1920*1080, 1280*960, 1280*720, 704*480, 640*480, 640*360)

Audio Sampling Rate AAC: 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32kHz, 64 kHz

Shutter Speed 1/1 s to 1/30,000 s

PT Movement Range PAN: 0° to 355°,Tilt: From 0° to 90°

Angle of View Horizontal FOV 96.7° to 31.6°, vertical FOV 51.1° to 17.7°, diagonal FOV 115.1° to 36.3°

Number of Infrared LEDs 4 pcs

Wide Dynamic Range 120 dB True WDR

Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE,

Region of Interest (ROI) 8 fixed regions for each stream

Basic Event Motion detection, video tampering alarm, exception

Audio Build in mic, and support 1-ch audio input and 1-ch audio output

Power Output 12 VDC, max. 60 mA

General

MaterialAluminum alloy, PC, PC + ABS	ColorWhite & Black
Operating Power12 VDC, Max. 9.2 W; PoE (802.3af)	StorageSupport MicroSD Card (up to 256 GB) and NAS(NFS, SMB/CIFS
Operating Temperature-4° to 140° F (-20° to 60° C)	Indoor/OutdoorIndoor/Outdoor
Protection LevelIP66, IK10, TVS 4000V lightning protection, surge protection, and voltage transient protection	DimensionØ 5.15" x 4.00" (Ø 130.7 mm × 101.7 mm)
WeightApproximately 1.17 lbs (0.53 kg)

MaterialAluminum alloy, PC, PC + ABS

Operating Power12 VDC, Max. 9.2 W; PoE (802.3af)

Operating Temperature-4° to 140° F (-20° to 60° C)

Protection LevelIP66, IK10, TVS 4000V lightning protection, surge protection, and voltage transient protection

WeightApproximately 1.17 lbs (0.53 kg)

Color White & Black

Storage Support MicroSD Card (up to 256 GB) and NAS(NFS, SMB/CIFS

Indoor/Outdoor Indoor/Outdoor

Dimension Ø 5.15" x 4.00" (Ø 130.7 mm × 101.7 mm)
