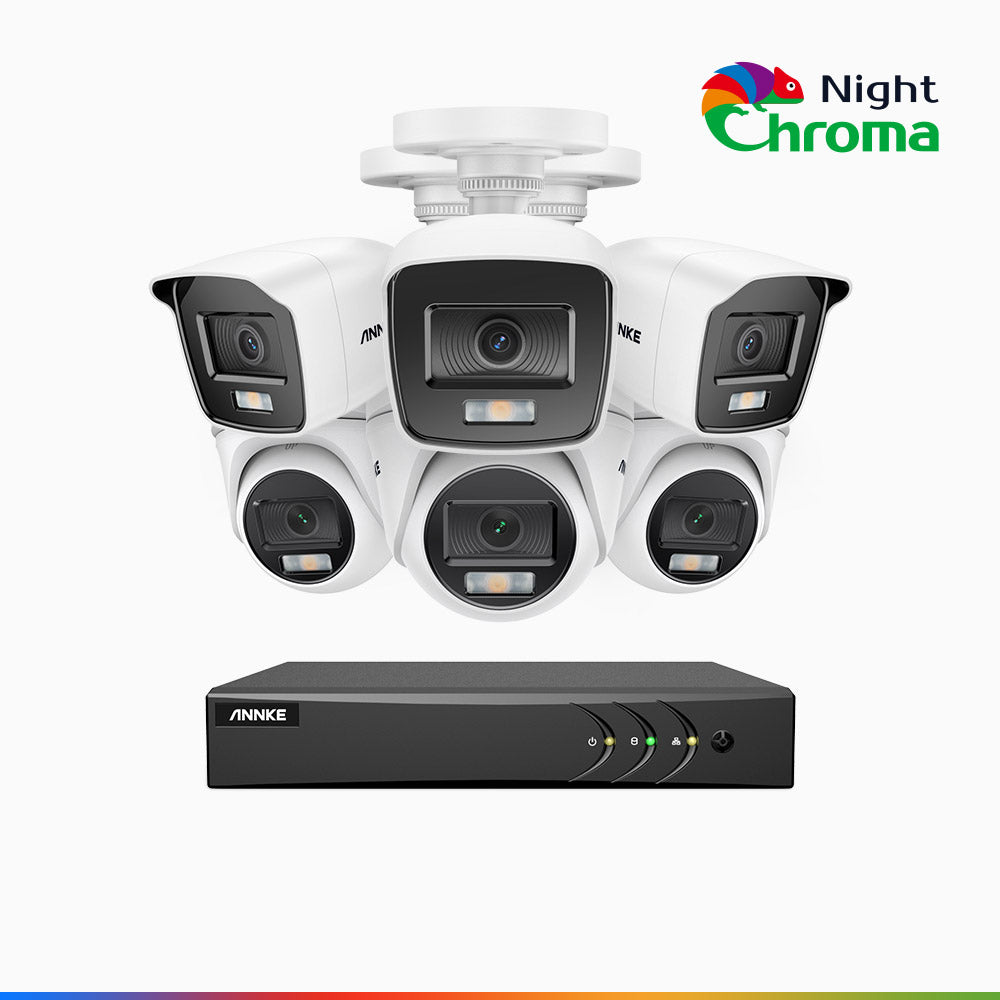

NightChroma^TM NAK200 - 1080P 8 Channel Wired CCTV System with 3 Bullet & 3 Turret Cameras, Acme Colour Night Vision, f/1.0 Super Aperture, 0.001 Lux, 121° FoV, Active Alignment

NightChroma<sup>TM</sup> NAK200 - 1080P 8 Channel Wired CCTV System with 3 Bullet & 3 Turret Cameras, Acme Colour Night Vision, f/1.0 Super Aperture, 0.001 Lux, 121° FoV, Active Alignment

NightChroma^TM NAK200 - 1080P 8 Channel Wired CCTV System with 3 Bullet & 3 Turret Cameras, Acme Colour Night Vision, f/1.0 Super Aperture, 0.001 Lux, 121° FoV, Active Alignment

€198,99

€226,99

SKU: DW81KD+CT1DW*3+C51EZ*3

Sin disco duro

1 TB

2 TB

3 TB

4 TB

6 TB

DIY Your Camera Color >

Secure Checkout With:

Paint Starry Night into
1080p Colourful World

8CH

DVR
Support Max. 8 Cams

1080p

Full HD
See Further & Clearer

Colour

Night Vision
View Colours at Night

121° FOV

2.8 mm Lens
Cover Wide Areas

World’s FIRST & ANNKE-ONLY
Acme color Night Vision

NightChorma^TM NCA200 takes smart security to the next level with unrivaled acme color night vision. Say goodbye to boring B&W or blurry color night vision captured by traditional cameras. Instead, you can paint dark night into 1080p colorful world even in 0.001 lux conditions without ambient lighting, or 0 lux with the supplement light.

Only security cameras with f/1.0 super aperture can capture acme color night vision. f/1.0 aperture, the largest aperture in video surveillance, collects 4X amount of lighting than f/2.0 aperture, to produce brighter images.

That’s the best backside illumination sensor. It increases 2X amount of light sensing areas to deliver clearer footages. The high-performance ISP image processing tech helps produce high-fidelity & colorful details.

The unique micro-size active alignment manufacturing technique allows for the most accurate focusing, bringing the adjustment accuracy to within 4 pixels, smaller than 1/30 hair diameter.

The soft supplement light turns on automatically in 0 lux illumination to ensure the best color night vision without glare. Remove overexposed or underexposed issues & capture 4MP footages with balanced lighting.

World’s FIRST & ANNKE-ONLY Acme color Night Vision

f/1.0 Super Aperture

Powerful BSI Sensor

Active Alignment Tech

The unique micro-size active alignment manufacturing technique allows for the most accurate focusing, bringing the adjustment accuracy to within 4 pixels, smaller than 1/30 hair diameter.

100 ft Supplement Light

1080p Full HD at Smooth 30 fps

The 2MP CMOS image sensor is capable of recording (a DVR is needed) at a real-time 25/30 fps in 1080p Full HD. This high frame rate will help capture the precise & vivid moments in your gardens, garages, studios, luxury or jewelry stores, candy houses.

4 Top-of-the-Line Image Enhancement Technologies

The wired camera adopts 4 incredible image enhancement technologies – 130 dB WDR, 3D DNR, BLC & HLC – to provide the splendid 5MP Super HD clarity. So, whether you view the live stream by day or by moonlight, you’ll get a new level of details and colors that wasn’t possible before.

4 Top-of-the-Line Image Enhancement Technologies

130 dB WDR

BLC

HLC

3D DNR

24/7 Security Provided by ANNKE 1080p Full HD System

ANNKE 5MP DVR is the perfect cornerstone for your home & business security camera system. With 5MP DVR integrated , the system allows your to get remote live stream & playback, smart motion alerts and 24/7 recording (an HDD is needed) without monthly cloud storage fees.

Built to Brave Extreme Hot & Cold Climates

Rated as IP66, this weatherproof camera can withstand pretty much anything, regardless of heavy snowfall, torrential downpours. This camera has been tested in extreme temperatures (-40 °F to 140 °F), ensuring all-year-round protection wherever you live.

Made from the same heavy-duty aluminum used in the construction of airplanes, the camera housing can withstand large impacts and is highly resistant to corrosion.

Metal

Rugged Housing

140 °F | 60 °C

Hot Rating

-40 °F | -40 °C

Cold Rating

IP66

Water Rating

Remote Viewing on the Go

This all-in-one system is designed for use with our innovative & intuitive ANNKE Vision App. You can quickly & easily control your system remotely via your smartphones, tablets or computers.

Small on Prices, Big on Features

ONVIF Compatible

The DVR works with ANNKE & third-party ONVIF surveillance cameras for seamless integration.

Customized Motion Areas

Customize the specific motion zones, like garage, front door, etc. for much more relevant motion alerts.

Instant Motion Alerts

Receive real-time app push notifications & email alerts when there are motion events.

4-in-1 Compatibility

The hybrid DVR supports up to 8 pcs TVI, AHD, TVI, CVBS analog & 2 pcs IP security cameras.

Specification

Download NCA200 Specification Download 5MP DVR (DW81KD) Specification

What's in the Box

➀ 5MP 8 Channel DVR (DW81KD)

➁ NCA200 Security Camera(s)

➂ BNC Cables(s)

➃ Mounting Screw Bag(S)(The quantity varies based on your choice.)

⑤ 1X User Manual

Camera

Image Sensor2MP CMOS Image Sensor	Video Resolution1920 (H) X 1080 (V)
Lens2.8 mm	Angle of View121°
Min. Illumination0.001 Lux@(F1.0, AGC On), 0 Lux with White Light	Signal SystemTVI: 1080p@25 fps, 1080p@30 fps CVI: 1080p@25 fps, 1080p@30 fps AHD: 1080p@25 fps, 1080p@30 fps CVBS: PAL/NTSC
Number of Warm Light1	Light DistanceUp to 65 ft/20 m
DNR3D DNR	Wide Dynamic Range130 dB WDR
Video OutputHD BNC X1

Image Sensor1080p CMOS Image Sensor

Lens2.6 mm

Min. Illumination0.001 Lux@(F1.0, AGC On), 0 Lux with White Light

Number of Warm Light1

DNR3D DNR

Video OutputHD BNC X1

Video Resolution 1980 (H) X 1080 (V)

Angle of View 121°

Signal SystemTVI: 1080p@25 fps, 1080p@30 fps
CVI: 1080p@25 fps, 1080p@30 fps
AHD: 1080p@25 fps, 1080p@30 fps
CVBS: PAL/NTSC

Light Distance Up to 65 ft/30 m

Wide Dynamic Range 130 dB WDR

General

HousingMetal	ColourWhite
Operating PowerDC 12 V	Indoor/OutdoorIndoor/Outdoor
Operating Temperature-40 °F – 140 °F/-40 °C – 60 °C	Dimension162.7 mm X 70 mm X 70.2 mm (6.41" X 2.75" X 2.75")
Weatherproof RatingIP66	Weight0.57 lb./ 265.5 g

HousingMetal

Operating PowerDC 12 V

Operating Temperature-40 °F – 140 °F/-40 °C – 60 °C

Weatherproof RatingIP66

Colour White

Indoor/Outdoor Indoor/Outdoor

Dimension162.7 mm X 70 mm X 70.2 mm (6.41" X 2.75" X 2.75")

Weight 0.57 lb./ 265 g

Video & Audio

Video CompressionH.264+/H.264/H.265/H.265+	Video OutputHDMI and VGA Up to 1080P
8CH Analog HD/Analog+2CH IP camera 16CH Analog HD/Analog+2CH IP	Analog HD Recording ResolutionFor 5 MP stream access: 5MP Lite/3MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Audio Input/Output1/1 RCA	Analog HD Playback Resolution5MP Lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF
IPC Recording ResolutionUp to 6MP	IPC Playback ResolutionUp to 6MP
8CH/ 16CH	ProtocolsSupport

Video CompressionH.264+/H.264/H.265/H.265+

Video Input4CH Analog HD/Analog+1CH IP
8CH Analog HD/Analog+2CH IP camera
16CH Analog HD/Analog+2CH IP

Audio Input/Output1/1 RCA

IPC Recording ResolutionUp to 6MP

8CH/ 16CH

Video Output HDMI and VGA Up to 1080P

Analog HD Recording Resolution For 5 MP stream access: 5MP Lite/3MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps
For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Analog HD Playback Resolution 5MP Lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF

IPC Playback Resolution Up to 6MP

Protocols Support

Hard Drive

HDD1 SATA interface

HDD CapacityUp to 6TB capacity

HDD1 SATA interface

HDD Capacity Up to 6TB capacity

General

Network interfaceRJ45x1(10/100M)	Working Condition-14 °F – 131 °F /-10 °C – 55 °C
BNC Output－	Alarm Input/Output－
RS485－	USBUSB2.0x2
Operating PowerDC12V	Dimensions(W x H x D)260 × 222 × 45 mm
Weight (without hard disk)≤ 1 kg (2.2 lb)(without HDD)

Network interfaceRJ45x1(10/100M)

BNC Output－

RS485－

Operating PowerDC12V

Weight (without hard disk)≤ 1 kg (2.2 lb)(without HDD)

Working Condition -14 °F – 131 °F /-10 °C – 55 °C

Alarm Input/Output －

USB USB2.0x2

Dimensions(W x H x D) 260 × 222 × 45 mm
